Domoticz Connecting Sensors

30 July, 2018

18:54

BME280 Temperature/humidity/barometer

/json.htm?type=command&param=udevice&idx=IDX&nvalue=0&svalue=TEMP;HUM;HUM_STAT;BAR;BAR_FOR

/json.htm?type=command&param=udevice&idx=19&nvalue=0&svalue=22.4;33.5;NORMAL;1022;0

BMP280:

/json.htm?type=command&param=udevice&idx=IDX&nvalue=0&svalue=TEMP;BAR;BAR_FOR;ALTITUDE

/json.htm?type=command&param=udevice&idx=20&nvalue=0&svalue=17.3;988;0;0

Temperatuur heeft 0.1 Celcius resolutie

Humidity 1% resolutie

The above sets the parameters for a Temp+Humidity+Barometer device

IDX = id of your device (This number can be found in the devices tab in the column "IDX")
TEMP = Temperature
HUM = Humidity
HUM_STAT = Humidity status
BAR = Barometric pressure
BAR_FOR = Barometer forecast

HUM_STAT can be one of:

Barometer forecast can be one of:

There are two additional parameters for the above commands, to specify the signal level (default 12) and the battery level (default 255)

battery level 255 = no battery device, else 0-100

example: &rssi=10&battery=89

CO2 Sensor

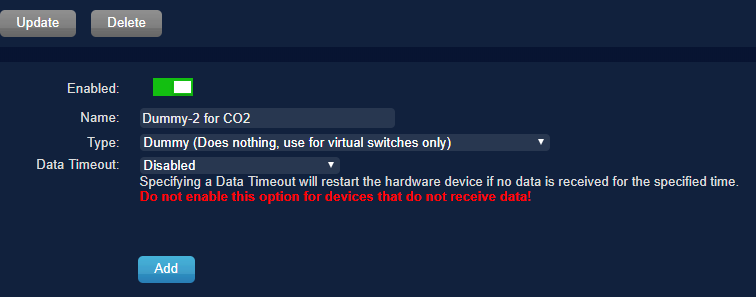

Add a virtual sensor to Domoticz (dummy sensors)

an air quality sensor

DHT22

Slimme Meter P1
